Elctro-Hdyrualic Operated
Elctro-Hdyrualic Operated Three Roll Planetary Axis Machine (Model No. 3R----PAEH)
Advantages
- The machine can be operated remotely from all around
- Specially developed hydraulic circuit requiring minimum maintenance
- Since all rolls are mounted in roller bearings, the electrical consumption is reduced by 50% compared to conventional pyramid type machines
- Since all roll movement and roll rotation are through hydraulic actuators, only one person is required to operate the machine with minimal effort
Special Features

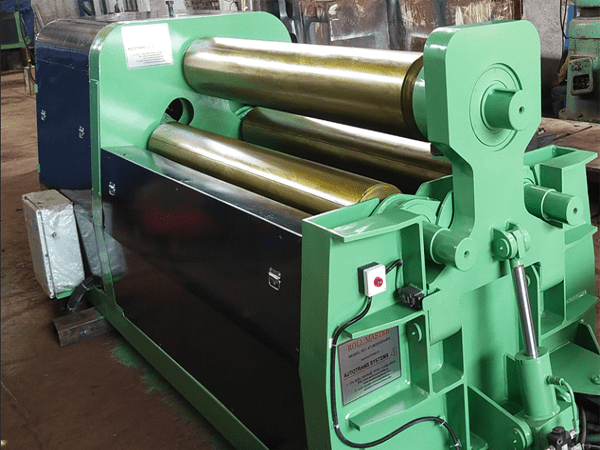

The machine frame is fabricated from all tested steel plate material. A Die Penetration test is carried out on all weld joints to ensure sound weld quality. This frame is subjected to stress relieving, sand blasting and epoxy primer . painted for corrosion free long lasting machine life.( Primer paint 160 DFT). The complete body frame is machined in CNC machine to achieve built.

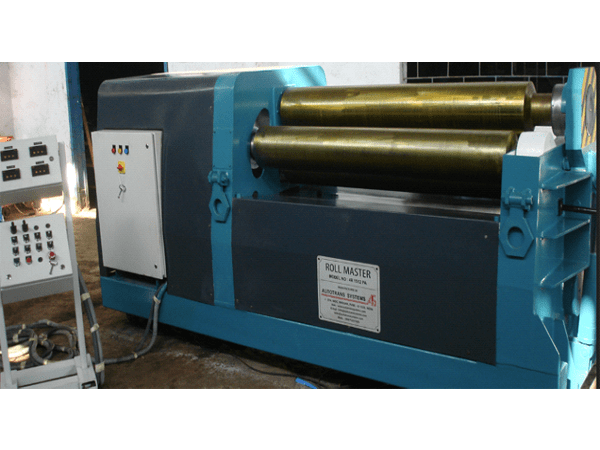

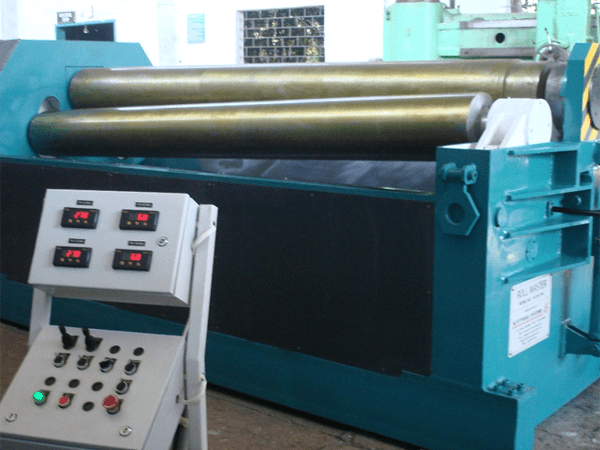

A adjustable control desk with wheels is provided. The main panel start / stop buttons and roll rotation function (Reverse / forward) is provided on the same. Both the side roll left side position and right side position are indicated separately by total four digital meters.

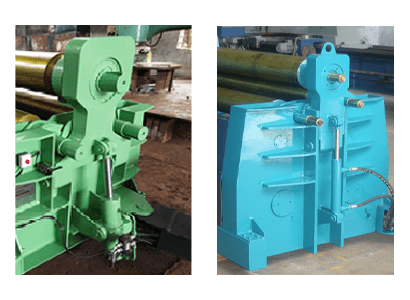

A specially designed & built mechanism allows drop end frame to tilt down in horizontal position without much efforts The top roll can be tilted to great degree of inclination making it most convenient and ease to remove rolled shells without any difficulty.

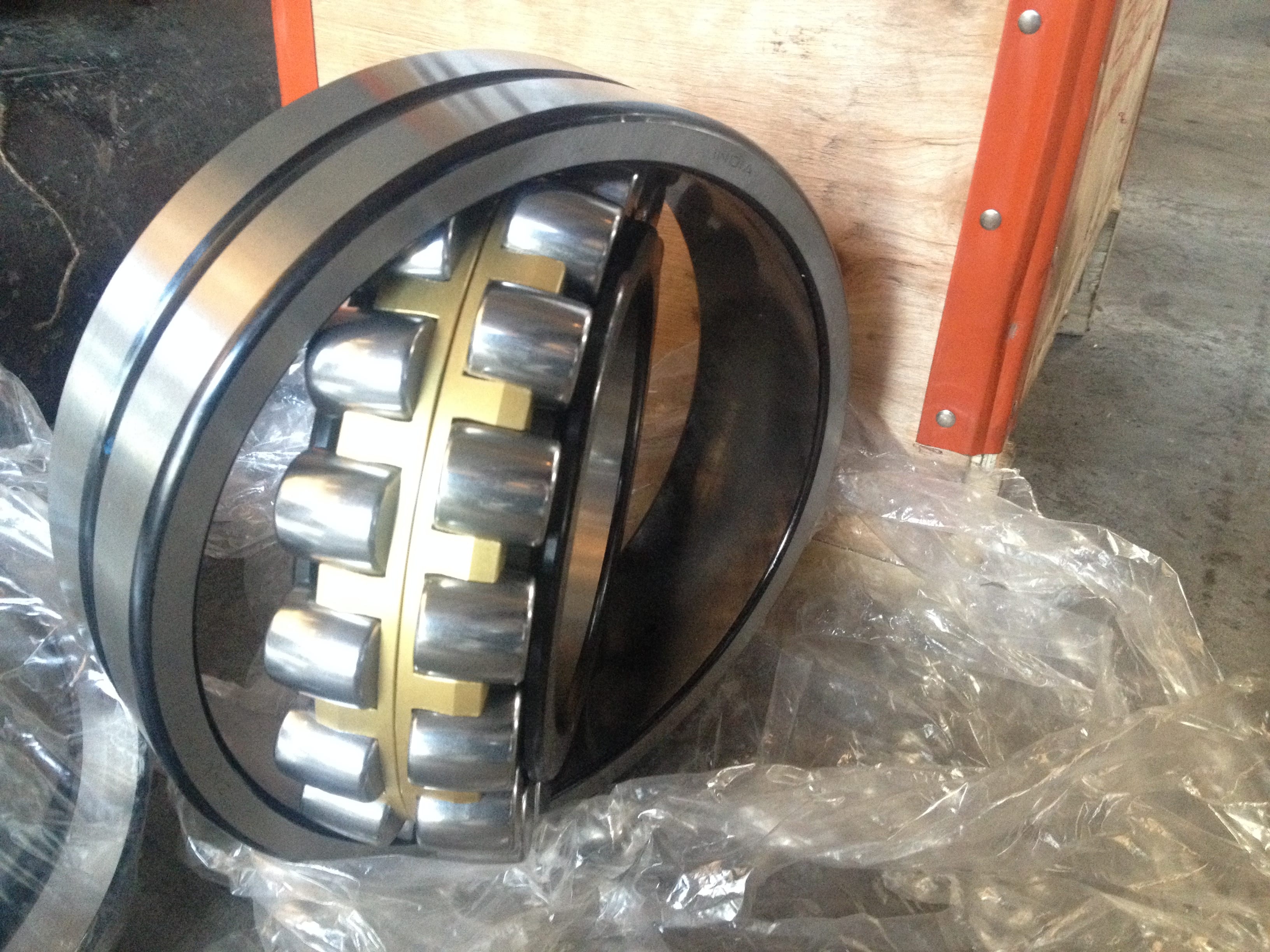

All our machine rolls are mounted in heavy duty roller bearings. Each roller is fitted with two bearing per side (four bearing per roller) .
A dual cone bending device can be provided as shown. The attachment provided between bottom rolls is suitable for narrow cone diameter. The attachment to be fitted on a main frame is suitable for cone having wide angle.
An extended rolls can be provided mounting dies to roll different section likes angle, chaneel , pipe, beam and flats etc.
The top roll can be tilted to great degree of inclination for ease of rolled shell removal.
Optional Featues
- Special alloy steel material for hardened rolls with hardness up to 52–60 RC
- All 3 rolls can be positively driven
- A separate cone bending attachment can be provided for narrow diameter cone forming
- Provision for section rolling
- Section bending dies

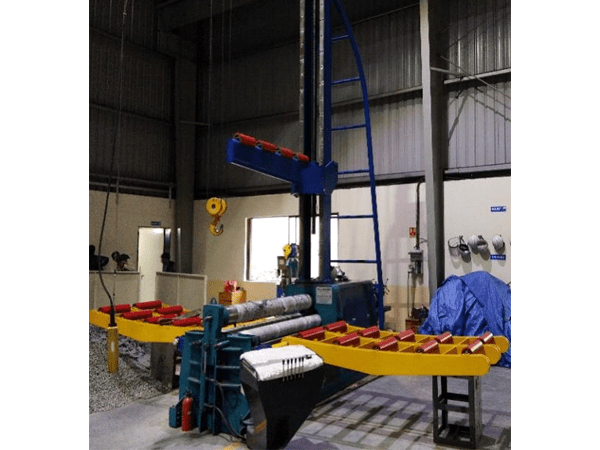

- Overhead support
- Lateral support
- Auto plate squaring reference stopper
- Tiltable top roll
- Automatic roll speed compensation
