Four Roll Planetary Axis (Section Bending Machine) - with pre bending / pre pinching

ROLL EXPERT PLATE & SECTION Four Roll Planetary Axis (Section Bending Machine) - with pre bending / pre pinching

Working Principle

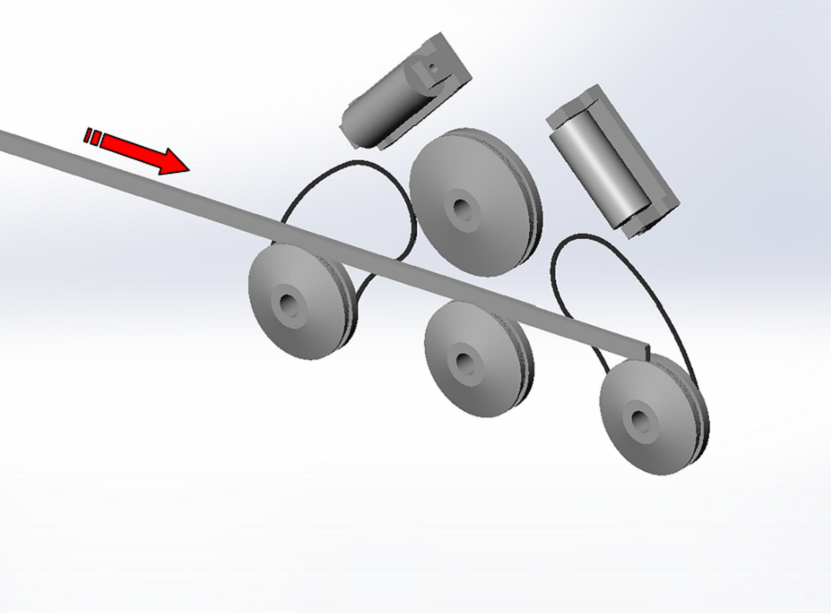

Section placed on a rolling dies

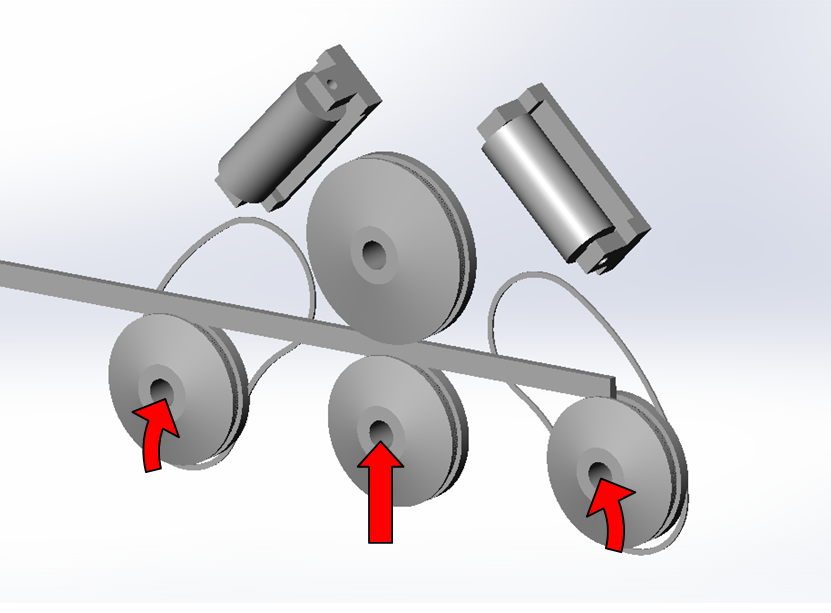

Bottom roll moves up for clamping

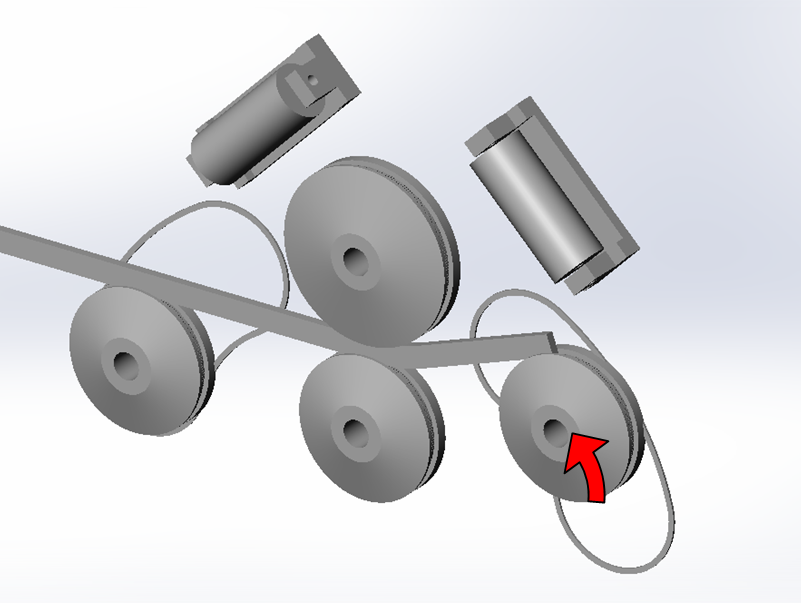

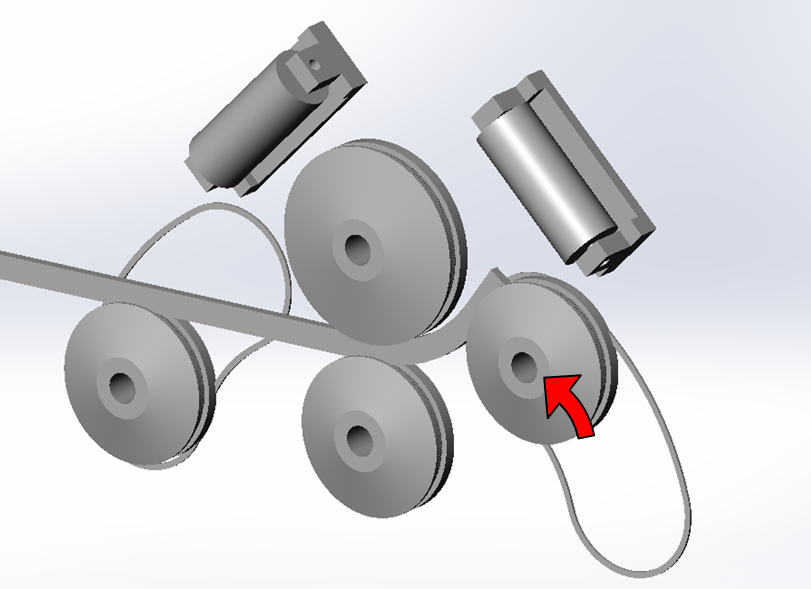

Side roll moves up for pre bending

Further position achieved for final dimensions

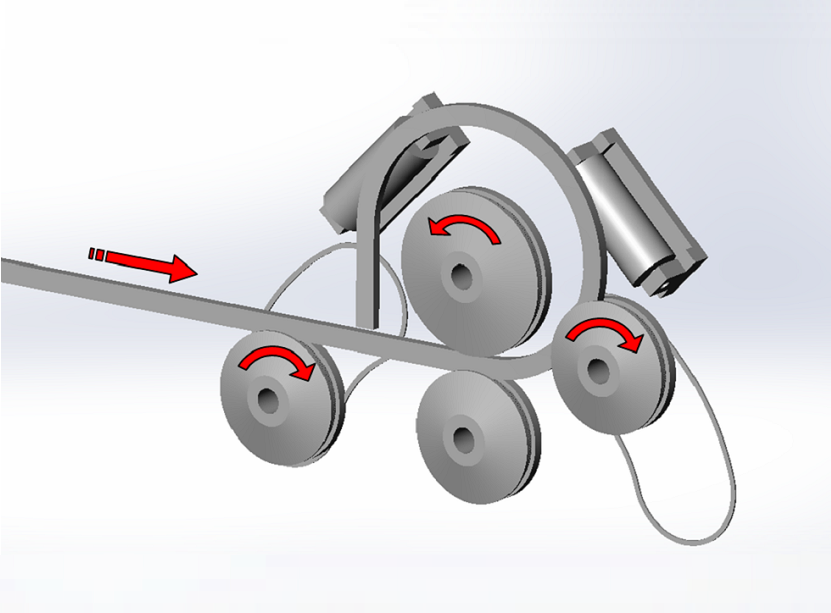

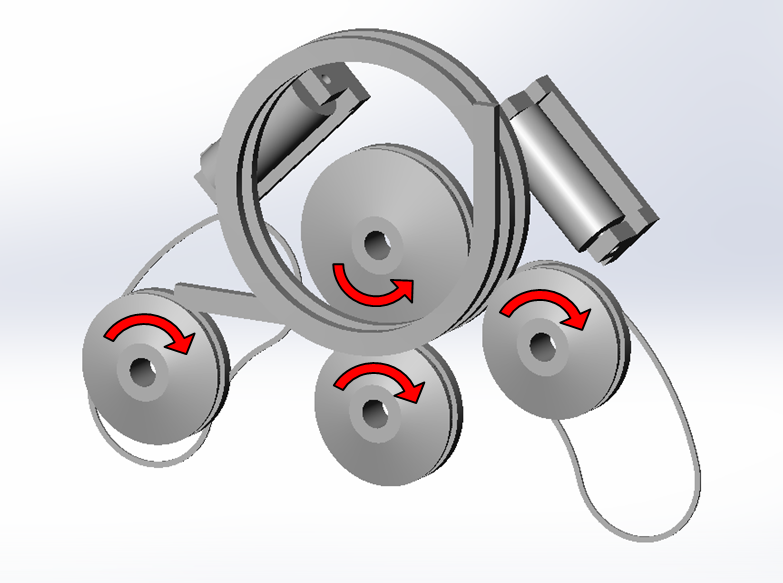

Pusher used for coiling

Rolling complete

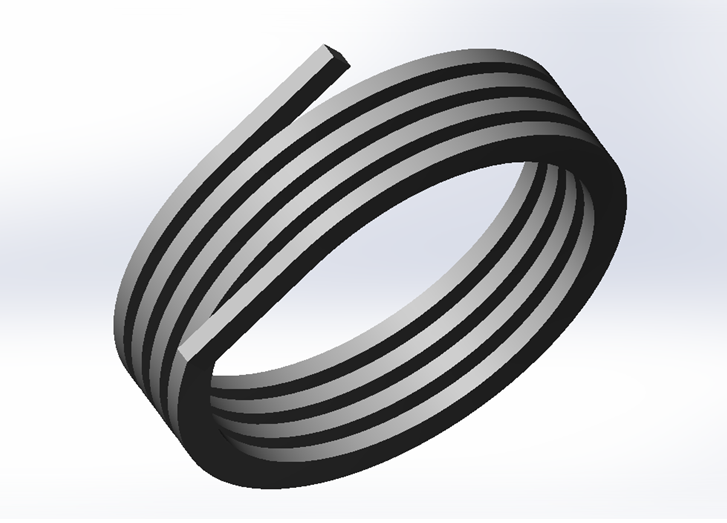

Final Job

Machines

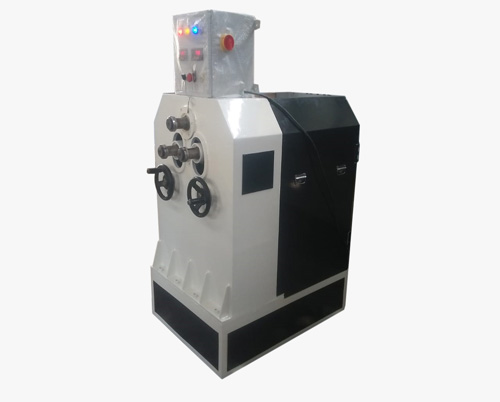

Manual Operated Four Roll Planetary Axis

(Model No. 4RSB---PAMN)

View Details

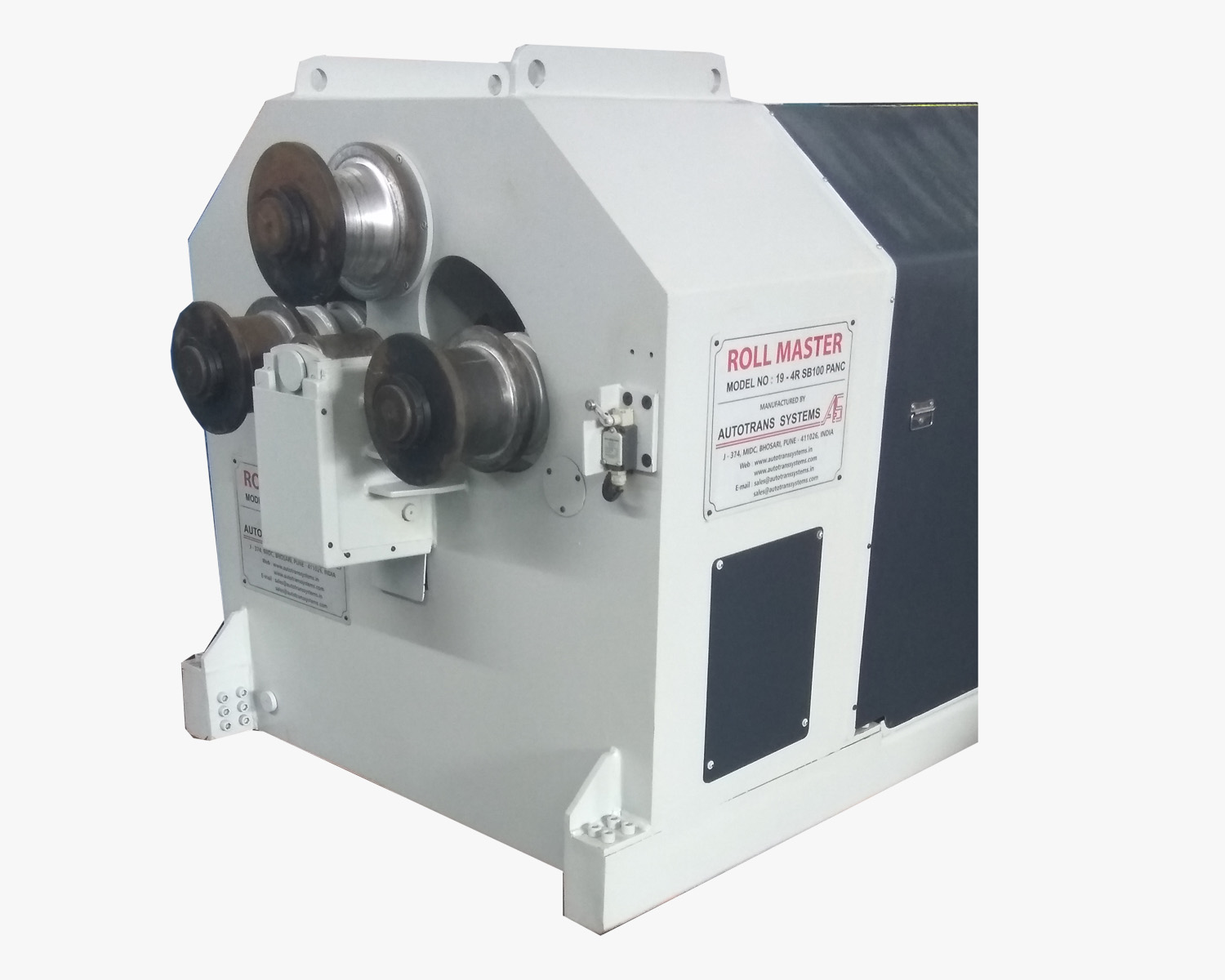

Hydraulically Operated Four Roll Planetary Axis

(Model No. 4RSB---PAMH)

View Details

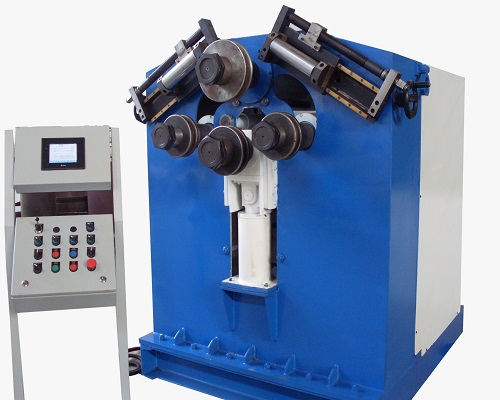

Electromechanical / NC Controlled Four Roll Planetary Axis

(Model No. 4RSB---PAEM/PANC)

View Details
