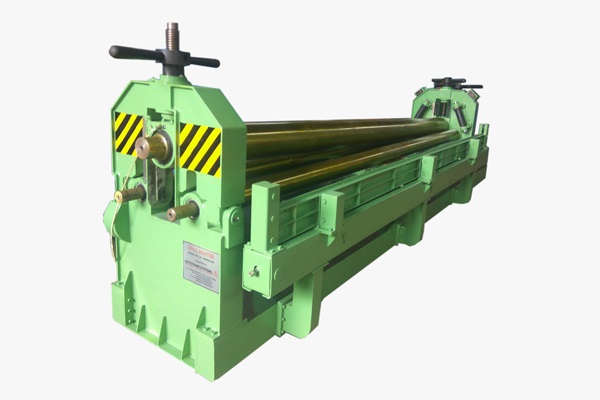

Manual Operated Three Roll Fix Axis Bending Machine (Model No. 3R----FAMN)

The machine is most economical model among all plate bending machine and is most useful for small fabrication shop.

Speelervaringen zoals die vegashero biedt, waren enkele jaren geleden nog zelden in deze kwaliteit beschikbaar. Een detailpagina van elk spel toont uitkeringspercentage, volatiliteit en ontwikkelaar. De live chat is met één klik vanuit elke casino-sectie bereikbaar. Het platform ondersteunt meertalige betalingsbevestigingen per e-mail. Spelers kunnen hun favorietenlijst ook mobiel bewerken en beheren. Live casino tafels met echte dealers bieden een authentieke speelervaring in realtime. Side-bets verruimen de strategische mogelijkheden aan klassieke tafels. Mystery-boxen met verrassingen worden regelmatig in het aanbod opgenomen. De positieve respons vanuit de community bevestigt het beeld van een rondom geslaagd platform.

Advantages

Special Features

Electro mechanical Operated

The machine frame is fabricated from all tested steel plate material. A Die Penetration test is carried out on all weld joints to ensure sound weld quality This frame is subjected to stress relieving, sand blasting and epoxy primer painted for corrosion free long lasting machine life.( Primer paint 160 DFT) The complete body frame is machined in CNC machine to achieve built in accuracy.

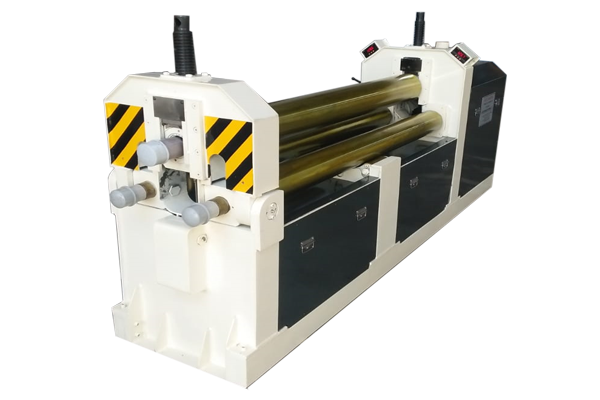

Hydro Manually Operated Three Roll Fix Axis

A tilt able control desk is conveniently located on machine. The main panel start / stop buttons and roll rotation fucntion (Reverse / forward) is provided on the same. The Top roll left side position and right side position are indicated separately by two digital meters.

Hydraulically Operated Three Roll Planetary Axis

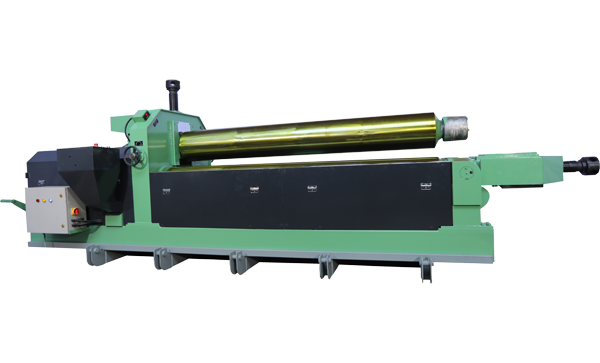

A specially designed & built mechanism allows drop end frame to tilt down in horizontal position without much efforts (one person can perform job). No need to dismantle frame from main body like in conventional machine. The top roll can be tilted to great degree of inclination making it most convenient and ease to remove rolled shells without any difficulty.

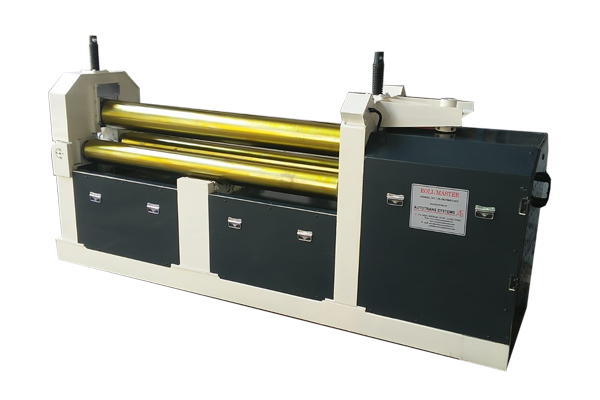

Electro mechanical Operated

All our machine rolls are mounted in heavy duty roller bearings. Each roller is fitted with two bearing per side (four bearing per roller).

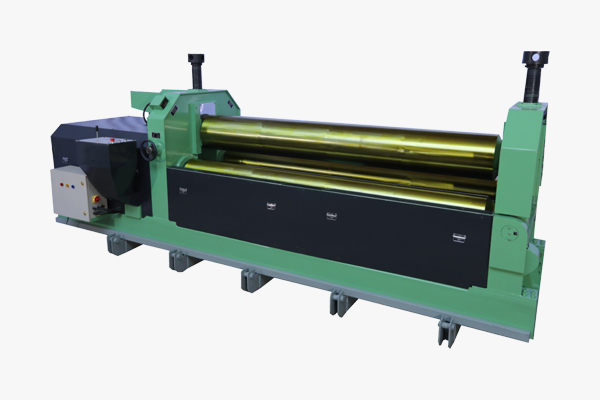

Electro Hydraulically Operated Three Roll Fix Axis

A dual cone bending device can be provided as shown. The attachment provided between bottom rolls is suitable for narrow cone diameter. The attachment to be fitted on a main frame is suitable for cone having wide angle.

Electro Hydraulically Operated Three Roll Fix Axis

An extra wide 'Y' type adjustable support rolls mounted in bearings provides best support to bottom rolls & eliminate scratches on top rolls.

Electro Hydraulically Operated Three Roll Fix Axis

An extended rolls can be provided for mounting dies to roll different sections like angle, channel, beam, pipe or flat etc.
